|Aggregat-4 / Vergeltungswaffe-2|

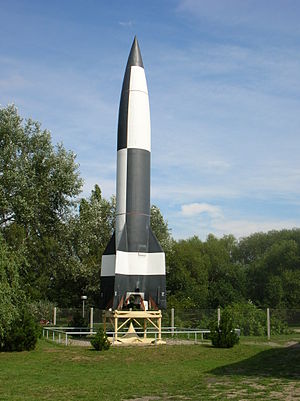

Peenemünde Museum replica of V-2
|Type||single stage ballistic missile|
|Place of origin||Germany|
|Used by|| Germany
United Kingdom (post-war)
United States (post-war)
Soviet Union (post-war)
|Designer||Peenemünde Army Research Center)|
|Unit cost||100,000 RM January 1944, 50,000 RM March 1945|
|Produced||16 March 1942- 1945 (Germany)
some assembled post war.
|Weight||12,500 kg (28,000 lb)|
|Length||14 m (45 ft 11 in)|
|Diameter||1.65 m (5 ft 5 in)|
|Warhead||1,000 kg (2,200 lb) Amatol|
|Wingspan||3.56 m (11 ft 8 in)|
|Propellant||3,810 kg (8,400 lb) 75% ethanol/25% water
4,910 kg (10,800 lb) liquid oxygen
|320 km (200 mi)|
|Flight altitude||88 km (55 mi) maximum altitude on long range trajectory,
206 km (128 mi) maximum altitude if launched vertically.
|Speed||maximum:5,760 km/h (3,580 mph)
at impact: 2,880 km/h (1,790 mph)
|Gyroscopes to determine direction
Müller-type pendulous gyroscopic accelerometer for engine cutoff on most production rockets:225
The V-2 (German: Vergeltungswaffe 2, "Vengeance Weapon 2"), technical name Aggregat-4 (A4), was a short-range ballistic missile that was developed during the Second World War in Germany, specifically targeted at London and later Antwerp. Commonly referred to as the V-2 rocket, the liquid-propellant rocket was the world's first long-range combat-ballistic missile and first known human artifact to enter outer space. It was the progenitor of all modern rockets, including those used by the United States and Soviet Union's space programs. During the aftermath of World War II the American, Soviet and British governments all gained access to the V-2's technical designs as well as the actual German scientists responsible for creating the rockets, via Operation Paperclip, Operation Osoaviakhim and Operation Backfire respectively.
Beginning in September 1944, over 3,000 V-2s were launched as military rockets by the German Wehrmacht against Allied targets during the war, mostly London and later Antwerp and Liège. According to a BBC documentary in 2011, the attacks resulted in the deaths of an estimated 9,000 civilians and military personnel, while 12,000 forced labourers and concentration camp prisoners were killed producing the weapons.
- 1 Developmental history
- 2 Technical details
- 3 Production
- 4 Launch sites
- 5 Operational history
- 6 Countermeasures
- 7 Assessment
- 8 Unfulfilled plans
- 9 Postwar use
- 10 In popular culture
- 11 Surviving V-2 examples and components
- 12 See also
- 13 Notes
- 14 References
- 15 Further reading
- 16 External links
Developmental history[edit source | edit]
In the late 1920s, a young Wernher von Braun acquired a copy of Hermann Oberth's book, Die Rakete zu den Planetenräumen (The Rocket into Interplanetary Space). Starting in 1930, he attended the Technical University of Berlin, where he assisted Oberth in liquid-fueled rocket motor tests. Von Braun was working on his creative doctorate when the Nazi Party gained power in Germany. An artillery captain, Walter Dornberger, arranged an Ordnance Department research grant for von Braun, who from then on worked next to Dornberger's existing solid-fuel rocket test site at Kummersdorf. Von Braun's thesis, Construction, Theoretical, and Experimental Solution to the Problem of the Liquid Propellant Rocket (dated 16 April 1934), was kept classified by the German army and was not published until 1960. By the end of 1934, his group had successfully launched two rockets that reached heights of 2.2 and 3.5 km (1.4 and 2.2 mi).
At the time, Germany was highly interested in American physicist Robert H. Goddard's research. Before 1939, German scientists occasionally contacted Goddard directly with technical questions. Von Braun used Goddard's plans from various journals and incorporated them into the building of the Aggregat (A) series of rockets.
Following successes at Kummersdorf with the first two Aggregate series rockets, Wernher von Braun and Walter Riedel began thinking of a much larger rocket in the summer of 1936, based on a projected 25-metric-ton-thrust engine.
After the A-4 project was postponed due to unfavourable aerodynamic stability testing of the A-3 in July 1936, von Braun specified the A-4 performance in 1937, and A-4 design and construction was ordered c1938/1939. During 28–30 September 1939, Der Tag der Weisheit (English: the day of wisdom) conference met at Peenemünde to initiate the funding of university research to solve rocket problems.:40 By late 1941, the Army Research Center at Peenemünde possessed the technologies essential to the success of the A-4. The four key technologies for the A-4 were large liquid-fuel rocket engines, supersonic aerodynamics, gyroscopic guidance and rudders in jet control. At the time, Adolf Hitler was not particularly impressed by the V-2; he pointed out that it was merely an artillery shell with a longer range and much higher cost.
In early September 1943, von Braun promised the Long-Range Bombardment Commission:224 that the A-4 development was "practically complete/concluded",:135 but even by the middle of 1944, a complete A-4 parts list was still unavailable.:224 Hitler was sufficiently impressed by the enthusiasm of its developers, and needed a "wonder weapon" to maintain German morale, so authorized its deployment in large numbers.
Technical details[edit source | edit]
The A-4 used a 75% ethanol/water mixture for fuel and liquid oxygen (LOX) for oxidizer.
At launch the A-4 propelled itself for up to 65 seconds on its own power, and a program motor controlled the pitch to the specified angle at engine shutdown, from which the rocket continued on a ballistic free-fall trajectory. The rocket reached a height of 80 km (50 mi) after shutting off the engine.
The fuel and oxidizer pumps were steam turbines, and the steam was produced by concentrated hydrogen peroxide with sodium permanganate catalyst. Both the alcohol and oxygen tanks were an aluminium-magnesium alloy.
The combustion burner reached a temperature of 2500–2700 °C (4500 – 4900 °F). The alcohol-water fuel was pumped along the double wall of the main combustion burner. This regenerative cooling heated the fuel and cooled the chamber. The fuel was then pumped into the main burner chamber through 1,224 nozzles, which assured the correct mixture of alcohol and oxygen at all times. Small holes also permitted some alcohol to escape directly into the combustion chamber, forming a cooled boundary layer that further protected the wall of the chamber, especially at the throat where the chamber was narrowest. The boundary layer alcohol ignited in contact with the atmosphere, accounting for the long, diffuse exhaust plume. By contrast, later, post-V-2 engine designs not employing this alcohol boundary layer cooling show a translucent plume with shock diamonds.
The V-2 was guided by four external rudders on the tail fins, and four internal graphite vanes at the exit of the motor. The LEV-3 guidance system consisted of two free gyroscopes (a horizontal and a vertical) for lateral stabilization, and a PIGA accelerometer to control engine cutoff at a specified velocity. The V-2 was launched from a pre-surveyed location, so the distance and azimuth to the target were known. Fin 1 of the missile was aligned to the target azimuth. Some later V-2s used "guide beams", radio signals transmitted from the ground, to keep the missile on course, but the first models used a simple analog computer that adjusted the azimuth for the rocket, and the flying distance was controlled by the timing of the engine cut-off, "Brennschluss", ground controlled by a Doppler system or by different types of on-board integrating accelerometers. The rocket stopped accelerating and soon reached the top of the approximately parabolic flight curve.
Dr. Friedrich Kirchstein of Siemens of Berlin developed the V-2 radio-control for motor-cut-off (German: Brennschluss).:28,124 For velocity measurement, Professor Wolman of Dresden created an alternative of his Doppler:18 tracking system in 1940–41, which used a ground signal transponded by the A-4 to measure the velocity of the missile.:103 By 9 February 1942, Peenemünde engineer de Beek had documented the radio interference area of a V-2 as 10,000 meters around the “Firing Point”, and the first successful A-4 flight on 3 October 1943, used radio control for Brennschluss.:12 Although Hitler commented on 22 September 1943, that "It is a great load off our minds that we have dispensed with the radio guiding-beam; now no opening remains for the British to interfere technically with the missile in flight",:138 about 20% of the operational V-2 launches were beam-guided.:12 The Operation Pinguin V-2 offensive began on 8 September 1944, when Lehr- und Versuchsbatterie No. 444:51–2 (English: Training and Testing Battery 444) launched a single rocket guided by a radio beam directed at Paris.:47 Wreckage of combat V-2s occasionally contained the transponder for velocity and fuel cutoff.:259–60
The painting of the operational V-2s was mostly a camouflage ragged pattern with several variations, but at the end of the war a plain olive green rocket also appeared. During tests, the rocket was painted in a characteristic black-and-white chessboard pattern, which aided in determining if the rocket was spinning around its longitudinal axis.
The original German designation of the rocket was "V2", unhyphenated, but U.S. publications such as LIFE magazine were using the hyphenated form "V-2" as early as December 1944. This hyphenated form has now become common usage.
Testing[edit source | edit]
The first successful test flight was on 3 October 1942:
This third day of October, 1942, is the first of a new era in transportation, that of space travel...
Two test launches were recovered by the Allies: the Bäckebo rocket which landed in Sweden on 13 June 1944 and one recovered by the Polish resistance on 30 May 1944 from Blizna and transported to the UK during Operation Most III.
Test launches of V-2 rockets (Aggregate-4) were made at Peenemünde, Blizna and Tuchola Forest, and after the war, at Cuxhaven by the British, White Sands Proving Grounds, Cape Canaveral and Kapustin Yar.
Various design issues were identified and solved during V-2 development and testing:
- To reduce tank pressure and weight, high flow turbopumps were used to boost pressure.:35
- A short and lighter combustion chamber without burn-through was developed by using centrifugal injection nozzles, a mixing compartment, and a converging nozzle to the throat for homogeneous combustion.:51
- Film cooling was used to prevent burn through at the nozzle throat.:52
- Relay contacts were made more durable to withstand vibration and prevent thrust cutoff just after lift-off.:52
- Ensuring that the fuel pipes had tension-free curves reduced the likelihood of explosions at 4,000–6,000 ft (1,219–1,829 m).:215,217
- Fins were shaped with clearance to prevent damage as the exhaust jet expanded with altitude.:56,118
- To control trajectory at liftoff and supersonic speeds, heat-resistant graphite vanes were used as rudders in the exhaust jet.:35,58
Airburst problem[edit source | edit]
Through mid-March 1944, only 4 of the 26 successful Blizna launches had satisfactorily reached the Sarnaki target area:112, 221–222, 282 due to in-flight breakup (Luftzerleger) on entry into the atmosphere.:100 Initially, excessive alcohol tank pressure was suspected, but by April 1944 after 5 months of test firings, the cause was still not determined. Major-General Rossmann, the Army Weapons Office department chief, recommended stationing observers in the target area – c. May/June, Walter Dornberger and Wernher von Braun set up a camp at the centre of the Poland target zone.: After moving to the Heidekraut,:172,173 SS Mortar Battery 500 of the 836th Artillery Battalion (Motorized) was ordered:47 on 30 August to begin test launches of eighty 'sleeved' rockets.:281 Testing confirmed that the so-called 'tin trousers' – a tube designed to strengthen the forward end of the rocket cladding—reduced the likelihood of airbursts.:100
Production[edit source | edit]
|Period of Production||Production|
|Up to 15 Sep 1944||1900|
|15 Sep to 29 Oct 1944||900|
|29 Oct to 24 Nov 1944||600|
|24 Nov to 15 Jan 1945||1100|
|15 Jan to 15 Feb 1945||700|
Launch sites[edit source | edit]
Following Operation Crossbow bombing, initial plans for launching from the massive underground Watten and Wizernes bunkers or from fixed pads such as near the Chateau du Molay were dropped in favour of mobile launching. Eight main storage dumps were planned and four had been completed by July 1944 (the one at Mery-sur-Oise was begun in August 1943 and completed by February 1944). The missile could be launched practically anywhere, roads running through forests being a particular favourite. The system was so mobile and small that only one Meillerwagen was ever caught in action by Allied aircraft, during the Operation Bodenplatte attack on January 1, 1945 near Lochem by a USAAF 4th Fighter Group aircraft, although Raymond Baxter described flying over a site during a launch and his wingman firing at the missile without hitting it.
It was estimated that a sustained rate of 350 V-2s could be launched per week, with 100 per day at maximum effort, given sufficient supply of the rockets.
Operational history[edit source | edit]
After Hitler's 29 August 1944 declaration to begin V-2 attacks as soon as possible, the offensive began on 8 September 1944 with a single launch at Paris, which caused modest damage near Porte d'Italie,:218,220,467. Two more launches by the 485th followed, including one from The Hague against London on the same day at 6:43 p.m.:285 – the first landed at Chiswick, killing 63-year-old Mrs. Ada Harrison, 3-year-old Rosemary Clarke, and Sapper Bernard Browning on leave from the Royal Engineers.:11 Upon hearing the double-crack of the supersonic rocket (London's first-ever), Duncan Sandys and Reginald Victor Jones looked up from different parts of the city and exclaimed "That was a rocket!", and a short while after the double-crack, the sky was filled with the sound of a heavy body rushing through the air.:286
As the V2 explosions came without warning, the British government initially attempted to conceal their cause by blaming them on defective gas mains. However, the public was not fooled and soon began sardonically referring to the V-2's as "flying gas pipes". The Germans themselves finally announced the V-2 on 8 November 1944 and only then, on 10 November 1944, did Winston Churchill inform Parliament, and the world, that England had been under rocket attack "for the last few weeks".
Positions of the German launch units did change a number of times. For example Artillerie Init 444 arrived in the southwest Netherlands (in Zeeland) in September 1944. From a field near the village of Serooskerke, five V-2s were launched on 15 and 16 September, with one more successful and one failed launch on the 18th. That same date, a transport carrying a missile took a wrong turn and ended up in Serooskerke itself, giving a villager the opportunity to surreptitiously take some photographs of the weapon; these were smuggled to London by the Dutch Resistance. After that the unit moved to Gaasterland in the northwest Netherlands, to make sure that the technology did not fall into Allied hands. From Gaasterland V-2s were launched against Ipswich and Norwich from 25 September (London being out of range). Because of their inaccuracy, these V-2s did not hit their target cities. Shortly after that only London and Antwerp remained as designated targets as ordered by Adolf Hitler himself, Antwerp being targeted in the period of 12 to 20 October, after which time the unit moved to The Hague.
Over the next few months the number of V-2s fired was at least 3,172, distributed over the various targets as follows:
- Belgium, 1664: Antwerp (1610), Liège (27), Hasselt (13), Tournai (9), Mons (3), Diest (2)
- United Kingdom, 1402: London (1358), Norwich (43),p289 Ipswich (1)
- France, 76: Lille (25), Paris (22), Tourcoing (19), Arras (6), Cambrai (4)
- Netherlands, 19: Maastricht (19)
- Germany, 11: Remagen (11)
An estimated 2,754 civilians were killed in London by V-2 attacks with another 6,523 injured, which is two people killed per V-2 rocket. However, this understates the potential of the V-2, since many rockets were misdirected and exploded harmlessly. Accuracy increased over the course of the war, particularly on batteries where Leitstrahl-Guide Beam apparatus was installed. Missile strikes were often devastating, causing large numbers of deaths—160 killed and 108 seriously injured in one explosion on 25 November 1944 in mid-afternoon, striking a Woolworth's department store in New Cross, south-east London.
After these deadly results, British intelligence leaked falsified information implying that the rockets were over-shooting their London target by 10 to 20 miles. This tactic worked and for the remainder of the war; most landed on less-heavily populated areas in Kent due to erroneous recalibration.
Antwerp, Belgium was also the target for a large number of V-weapon attacks from October 1944 through March 1945, leaving 1,736 dead and 4,500 injured in greater Antwerp. Thousands of buildings were damaged or destroyed as the city was struck by 590 direct hits. The largest loss of life in a single attack came on 16 December 1944, when the roof of a crowded cinema was struck, leaving 567 dead and 291 injured.
A scientific reconstruction carried out in 2010 demonstrated that the V-2 creates a crater 20 m wide and 8 m deep, ejecting approximately 3,000 tons of material into the air.
Countermeasures[edit source | edit]
Unlike the V-1, the V-2's speed and trajectory made it practically invulnerable to anti-aircraft guns and fighters, as it dropped from an altitude of 100–110 km (62–68 mi) at up to four times the speed of sound (approximately 3550 km/h). A plan was proposed whereby the missile would be detected by radar, its terminal trajectory calculated, and the area along that trajectory saturated by large-caliber anti-aircraft guns. The plan was dropped after operations research indicated that the likely number of malfunctioning artillery shells falling to the ground would do more damage than the V-2 itself.
The defence against the V-2 campaign was to destroy the launch infrastructure—expensive in terms of bomber resources and casualties—or to cause the Germans to aim at the wrong place through disinformation. The British were able to convince the Germans to direct V-1s and V-2s aimed at London to less populated areas east of the city. This was done by sending deceptive reports on the damage caused and sites hit via the German espionage network in Britain, which was controlled by the British (the Double-Cross System).
Ultimately the most successful countermeasure was the Allied advance that forced the launchers back beyond range.
On 3 March 1945 the Allies attempted to destroy V-2s and launching equipment in the "Haagse Bos" in The Hague by a large-scale bombardment, but due to navigational errors the Bezuidenhout quarter was destroyed, killing 511 Dutch civilians.
Assessment[edit source | edit]
The German V-weapons (V-1 and V-2) cost $3 billion (wartime dollars) and was more costly than the Manhattan Project that produced the atomic bomb ($1.9 billion).:178 6,048 V-2s were built, at a cost of approximately 100,000 Reichsmarks (GB£2,370,000 (2011)) each; 3,225 were launched. SS General Hans Kammler, who as an engineer had constructed several concentration camps including Auschwitz, had a reputation for brutality and had originated the idea of using concentration camp prisoners as slave laborers in the rocket program. The V-2 is perhaps the only weapon system to have caused more deaths by its production than its deployment.
"… those of us who were seriously engaged in the war were very grateful to Wernher von Braun. We knew that each V-2 cost as much to produce as a high-performance fighter airplane. We knew that German forces on the fighting fronts were in desperate need of airplanes, and that the V-2 rockets were doing us no military damage. From our point of view, the V-2 program was almost as good as if Hitler had adopted a policy of unilateral disarmament." (Freeman Dyson)
The V-2 consumed a third of Germany's fuel alcohol production and major portions of other critical technologies: to distil the fuel alcohol for one V-2 launch required 30 tonnes of potatoes at a time when food was becoming scarce. Due to a lack of explosives, concrete was used and sometimes the warhead contained photographic propaganda of German citizens who had died in Allied bombing.
The V-2 lacked a proximity fuse, so it could not be set for air burst; it buried itself in the target area before or just as the warhead detonated. This reduced its effectiveness. Furthermore, its early guidance systems were too primitive to hit specific targets and its costs were approximately equivalent to four-engined bombers, which were more accurate (though only in a relative sense), had longer ranges, carried many more warheads, and were reusable. Moreover, it diverted resources from other, more effective programs. That said, the limiting factor for German aviation after 1941 was always the availability of high test aviation gas (not planes or pilots), so criticisms of the V-1 and V-2 programs that compare their cost to hypothetical increases in fighter or bomber production are misguided. Nevertheless, the weapon had a considerable psychological effect because, unlike bombing planes or the V-1 Flying Bomb (which made a characteristic buzzing sound), the V-2 travelled faster than the speed of sound, with no warning before impact, no possibility of defence and there was no risk of attacking pilot and crew casualties.
With the war all but lost, regardless of the factory output of conventional weapons, the Nazis resorted to V-weapons as a tenuous last hope to influence the war militarily (hence Antwerp as V-2 target), as an extension of their desire to "punish" their foes and most importantly to give hope to their supporters with their miracle weapon. The V-2 had no effect on the outcome of the war, but its value, despite its overall ineffectiveness, was in its novelty as a weapon which set the stage for the next 50 years of ballistic military rocketry, culminating with ICBMs during the Cold War and modern space exploration.
Unfulfilled plans[edit source | edit]
A submarine-towed launch platform was tested successfully, making it the prototype for submarine-launched ballistic missiles. The project codename was Prüfstand XII ("Test stand XII"), sometimes called the rocket U-boat. If deployed, it would have allowed a U-boat to launch V-2 missiles against United States cities, though only with considerable effort (and limited effect). Hitler, in July 1944 and Speer, in January 1945, made speeches alluding to the scheme, though Germany did not possess any capability to fulfill these threats. These schemes were met by the Americans with Operation Teardrop.
While interned after the war by the British at CSDIC camp 11, Dornberger was recorded saying that he had begged the Führer to stop the V-weapon propaganda, because nothing more could be expected from one ton of explosive. To this Hitler had replied that Dornberger might not expect more, but he (Hitler) certainly did.
According to decrypted messages from the Japanese embassy in Germany, twelve dismantled V-2 rockets were shipped to Japan. These left Bordeaux in August 1944 on the transport U-boats U-219 and U-195, which reached Djakarta in December 1944. A civilian V-2 expert was a passenger on U-234, bound for Japan in May 1945 when the war ended in Europe. The fate of these V-2 rockets is unknown.
Near the end of the war, German scientists were working on chemical and possibly biological weapons to use in the V-2 program. By this stage, the Germans had produced munitions containing nerve agents sarin, soman and tabun; they never used them.
Postwar use[edit source | edit]
At the end of the war, a race began between the United States and the USSR to retrieve as many V-2 rockets and staff as possible. Three hundred rail-car loads of V-2s and parts were captured and shipped to the United States and 126 of the principal designers, including Wernher von Braun and Walter Dornberger, were in American hands. Von Braun, his brother Magnus von Braun, and seven others decided to surrender to the United States military (Operation Paperclip) to ensure they were not captured by the advancing Soviets or shot dead by the Nazis to prevent their capture.
In October 1945, British Operation Backfire assembled a small number of V-2 missiles and launched three of them from a site in northern Germany. The engineers involved had already agreed to move to the US when the test firings were complete. The Backfire report remains the most extensive technical documentation of the rocket, including all support procedures, tailored vehicles and fuel composition.
Post-war V-2s launched in secret from Peenemünde may have been responsible for a curious phenomenon known as ghost rockets, unexplained objects crossing the skies over Sweden and Finland.
In his book My Father's Son, Canadian author Farley Mowat, then a member of the Canadian Army, claims to have obtained a V-2 rocket in 1945 and shipped it back to Canada, where it is alleged to have ended up in the National Exhibition grounds in Toronto. There was a V-2 stored outside at RCAF Station Picton, Ontario in June 1961.
- United States
Operation Paperclip recruited German engineers and Special Mission V-2 transported the captured V-2 parts to the United States. At the close of the Second World War, over 300 rail cars filled with V-2 engines, fuselages, propellant tanks, gyroscopes, and associated equipment were brought to the railyards in Las Cruces, New Mexico, so they could be placed on trucks and driven to the White Sands Proving Grounds, also in New Mexico.
In addition to V-2 hardware, the U.S. Government delivered German mechanization equations for the V-2 guidance, navigation, and control systems, as well as for advanced development concept vehicles, to U.S. defense contractors for analysis. In the 1950s some of these documents were useful to U.S. contractors in developing direction cosine matrix transformations and other inertial navigation architecture concepts that were applied to early U.S. programs such as the Atlas and Minuteman guidance systems as well as the Navy's Subs Inertial Navigation System.
A committee was formed with military and civilian scientists, to review payload proposals for the reassembled V-2 rockets. This led to an eclectic array of experiments that flew on V-2s and paved the way for American manned space exploration. Devices were sent aloft to sample the air at all levels to determine atmospheric pressures and to see what gases were present. Other instruments measured the level of cosmic radiation.
The U.S. Navy attempted to launch a German V-2 rocket at sea—one test launch from the aircraft carrier USS Midway was performed on 6 September 1947 as part of the Navy's Operation Sandy. The test launch was a partial success; the V-2 went off the pad but splashed down in the ocean only some 10 km (6.2 mi) from the carrier. The launch setup on the Midway's deck is notable in that it used foldaway arms to prevent the missile from falling over. The arms pulled away just after the engine ignited, releasing the missile. The setup may look similar to the R-7 launch procedure but in the case of the R-7 the trusses hold the full weight of the rocket, rather than just reacting to side forces.
The USSR also captured a number of V-2s and staff, letting them set up in Germany for a time. The first work contracts were signed in the middle of 1945. In 1946 (as part of Operation Osoaviakhim) they were obliged to move to Kapustin Yar in the USSR, where Gröttrup headed up a group of just under 250 engineers. The first Soviet missile was the R-1, a duplicate of the V-2. Most of the German team was sent home after that project but some remained to do research until as late as 1951. Unbeknownst to the Germans, work immediately began on larger missiles, the R-2 and R-5, based on extension of the V-2 technology.
In popular culture[edit source | edit]
- Thomas Pynchon makes the V-2 rocket the central point of his postmodern novel Gravity's Rainbow.
- The MGM movie Operation Crossbow dramatises Allied efforts to impede the V-1 and V-2 programmes.
- Hergé's The Adventures of Tintin comic "Destination Moon" (Objectif Lune), first published in 1950, depicts a moon rocket marginally resembling the V2 rocket, though much larger and with very different fins.
- In Command and Conquer: Red Alert, which takes place in an alternate time period, the Soviet red army uses V2 rockets that are launched via trucks against Allied nations.
Surviving V-2 examples and components[edit source | edit]
At least 20 V-2s still existed in 2012.
Australia[edit source | edit]
- One at the Australian War Memorial, Canberra, including complete Meillerwagen transporter. The rocket has the most complete set of guidance components of all surviving A4s. The Meillerwagen is the most complete of the three examples known to exist. Another A4 was on display at the RAAF Museum at Point Cook outside Melbourne. Both rockets now reside in Canberra.
Netherlands[edit source | edit]
- One example, partly skeletonized, is in the collection of the Royal Netherlands Army Museum. In this collection are also a launching table and some loose parts, as well as the remains of a V-2 that crashed in The Hague immediately after the launch.
Poland[edit source | edit]
- Several large components, like hydrogen peroxide tank and reaction chamber, the propellant turbopump and the HWK rocket engine chamber (partly cut-out) are displayed at the Polish Aviation Museum in Kraków
France[edit source | edit]
- One engine at Cité de l'espace in Toulouse.
- V-2 display including engine, parts, rocket body and many documents and photographs relating to the development and use at La Coupole museum, Wizernes, Pas de Calais.
- One rocket body no engine, one complete engine, one lower engine section and one wrecked engine on display at La Coupole museum
- One engine complete with steering pallets, feed lines and tank bottoms, plus one cut-out thrust chamber and one cut-out turbopump at the Snecma (Space Engines Div.) museum in Vernon
Germany[edit source | edit]
- One complete missile and an additional engine at the Deutsches Museum in Munich.
- One engine at the Museum of Technology in Berlin.
- One rusty engine in the original V-2 underground production facilities at the Dora-Mittelbau concentration camp memorial site.
United Kingdom[edit source | edit]
- One at the Science Museum, London.
- One, on loan from Cranfield University, at the Imperial War Museum, London.
- The RAF Museum has two rockets, one displayed at the museum's London site and one at the Cosford site. The museum also owns a Meillerwagen, a Vidalwagen, a Strabo crane, and a firing table with towing dolly.
- One at the Royal Engineers Museum in Chatham, Kent.
- A fuel combustion chamber from a fired example is in Norfolk and Suffolk Aviation Museum near Bungay
- A complete turbo-pump is at Solway Aviation Museum, Carlisle Airport as part of the Blue Streak Rocket exhibition.
- The venturi segment of one discovered in April 2012 was donated to the Harwich Sailing Club after they found it buried in a mudflat.
- Fuel combustion chamber recovered from the sea near Clacton at the East Essex Aviation Museum, St Oysth
United States[edit source | edit]
- Complete missiles
- One at the National Museum of the United States Air Force, including complete Meillerwagen transporter, Dayton, Ohio.
- One (chessboard-painted) at the Kansas Cosmosphere and Space Center in Hutchinson, Kansas.
- One at the National Air and Space Museum, Washington, D.C.
- One at the Fort Bliss Air Defense Museum, El Paso, Texas.
- One (yellow and black) at Missile Park, White Sands Missile Range, White Sands, New Mexico.
- One at Marshall Space Flight Center in Huntsville, Alabama.
- One at the U.S. Space & Rocket Center in Huntsville, Alabama.
- One engine at the Stafford Air & Space Museum in Weatherford, Oklahoma.
- One engine at the U.S. Space & Rocket Center in Huntsville, Alabama.
- One engine at the National Museum of the United States Air Force
- One engine at the Museum of Science and Industry in Chicago.
- One rocket body and one engine at the United States Army Ordnance Museum in Aberdeen, Maryland. (moved to Wright-Patterson AFB in Dayton Ohio in approx 2005.)
- One rocket body at Picatinny Arsenal in Dover, NJ.
- One engine in the Auburn University Engineering Lab
- One engine in the Blockhouse building on the Historic Cape Canaveral Tour in Cape Canaveral, Florida.
- One engine at Parks College of Engineering, Aviation and Technology in St.Louis, Missouri
See also[edit source | edit]
Notes[edit source | edit]
- Kennedy, Gregory P. (1983). Vengeance Weapon 2: The V-2 Guided Missile. Washington DC: Smithsonian Institution Press. pp. 27, 74.
- 10% of the Mittelwerk rockets used a guide beam for cutoff.
- Neufeld, Michael J (1995). The Rocket and the Reich: Peenemünde and the Coming of the Ballistic Missile Era. New York: The Free Press. pp. 73, 74, 101, 281.
- 'Long-range' in the context of the time. See NASA history article.
- Zaloga, Steven (2003). V-2 Ballistic Missile 1942–52. Reading: Osprey Publishing. p. 3. ISBN 978-1-84176-541-9.
- Peenemünde, Walter Dornberger, Moewig, Berlin 1984. ISBN 3-8118-4341-9.
- NOVA science programme(s). Sputnik Declassified. Public Broadcasting Service (PBS). 2008.
- "The V2 and the German, Russian and American Rocket Program", C. Reuter. German Canadian Museum. p. 170. ISBN 1-894643-05-4, ISBN 978-1-894643-05-4.
- The Third Reich: politics and propaganda, David Welch, page 149: Nazi propaganda at war
- Am Anfang war die V2. Vom Beginn der Weltraumschifffahrt in Deutschland. In: Utz Thimm (Hrsg.): Warum ist es nachts dunkel? Was wir vom Weltall wirklich wissen. Kosmos, 2006, S. 158, ISBN 3-440-10719-1
- Wernher von Braun#Early life.
- Wernher von Braun#The Prussian rocketeer and working under the Nazis.
- Konstruktive, theoretische und experimentelle Beiträge zu dem Problem der Flüssigkeitsrakete. Raketentechnik und Raumfahrtforschung, Sonderheft 1 (1960), Stuttgart, Germany
- Ordway, Frederick I, III; Sharpe, Mitchell R. The Rocket Team. Apogee Books Space Series 36. p. 32. ISBN 1-894959-00-0.
- Dornberger, Walter (1952, English translation 1954). V-2. New York: Viking.
- Irving, David (1964). The Mare's Nest. London: William Kimber and Co. p. 17.
- Middlebrook, Martin (1982). The Peenemünde Raid: The Night of 17–18 August 1943. New York: Bobs-Merrill. p. 19.
- Braun, Wernher von (Estate of); Ordway III, Frederick I & Dooling, David Jr. (1985) . Space Travel: A History. New York: Harper & Row. p. 45. ISBN 0-06-181898-4.
- Irons, Roy. Hitler's terror weapons: The price of vengeance. p. 181.
- Hakim, Joy (1995). A History of Us: War, Peace and all that Jazz. New York: Oxford University Press. pp. 100–104. ISBN 0-19-509514-6.
- Hunt, Linda (1991). Secret Agenda: The United States Government, Nazi Scientists, and Project Paperclip, 1945 to 1990. New York: St.Martin's Press. pp. 72–74. ISBN 0-312-05510-2.
- Béon, Yves (1997). Planet Dora: A Memoir of the Holocaust and the Birth of the Space Age. translated from the French La planète Dora by Béon & Richard L. Fague. Westview Press, Div. of Harper Collins. pp. (SC) page tbd. ISBN 0-8133-3272-9.
- Dungan, T. "The A4-V2 Rocket Site". Retrieved 2 June 2011.
- The History Channel V2 Factory: Nordhausen 070723
- Stakem, Patrick H. The History of Spacecraft Computers from the V-2 to the Space Station, 2010, PRB Publishing, ASIN B004L626U6
- Pocock, Rowland F (1967). German Guided Missiles of the Second World War. New York: Arco Publishing Company, Inc. pp. 51, 52.
- Klee, Ernst; Merk, Otto (1963, English translation 1965). The Birth of the Missile:The Secrets of Peenemünde. Hamburg: Gerhard Stalling Verlag. p. 47.
- "V-2: Nazi Rocket Details Are Finally Revealed". LIFE 17 (26): 46–48. 25 December 1944.
- # (Polish) Michał Wojewódzki, Akcja V-1, V-2, Warsaw 1984, ISBN 83-211-0521-1
- Johnson (1981/1982). V-1, V-2: Hitler’s Vengeance on London. Stein and Day. p. 100.
- Ruggles, Richard; Brodie, Henry (1947). "An Empirical Approach to Economic Intelligence in World War II". Journal of the American Statistical Association 42 (237): 72–91. doi:10.2307/2280189. JSTOR 2280189.
- Jones, R. V. (1978). Most Secret War: British Scientific Intelligence 1939–1945. London: Hamish Hamilton. p. 433. ISBN 0-241-89746-7.
- "V-Weapons Crossbow Campaign". Allworldwars.com. Retrieved 2010-04-27.
- Ordway, Frederick I, III; Sharpe, Mitchell R (1979). The Rocket Team (index). Apogee Books Space Series 36. New York: Thomas Y. Crowell. p. 256. ISBN 1-894959-00-0.
- Walker, John (27 September 1993). "A Rocket a Day Keeps the High Costs Away". Retrieved 2008-11-14.
- King, Kutta (1998), p.244
- van Dijk, A.H.; Eekman, P.G.; Roelse, J.; Tuynman, J. (1984). Walcheren onder vuur en water 1939–1945 (in nl). Middelburg: Den Boer Middelburg/Uitgevers. p. 98. ISBN 90 70027 82 8.
- Air Raid Precautions – Deaths and injuries
- "Mobile Firing Operations & Locations". V2Rocket.com.
- Blitz Street; Channel 4, 10 May 2010
- Foster, Vicki. "65th anniversary of the V2 rocket landing in Orpington", News Shopper, Orpington, Kent, 2 April 2010.
- "V2Rocket.com "Antwerp, The City of Sudden Death"".
- MDA Link
- Stocker, Jeremy (Nov/Dec 2004). "Missile Defence – Then and Now" (PDF). The Officer Magazine: 34–37. Archived from the original on 26 March 2009.
- Mittelbau Overview
- Dyson, Freeman (1979). Disturbing the Universe. Harper & Row. p. 108. ISBN 978-0-465-01677-8.
- Oberg, Jim; Sullivan, Dr. Brian R (original draft). "'Space Power Theory". U.S. Air Force Space Command: Government Printing Office. p. 143. Retrieved 2008-11-28.
- First German V2 rocket lands on London
- "Hitler's Rocket U-boat Program - history of WW2 rocket submarine". Uboataces.com. Retrieved 2010-04-27.
- Article in San Diego Times c.25 July 1944
- Besant, John Stalin's Silver concerning the sinking of SS John Barry near Aden in 1944
- "We Want with the West", Time Magazine, 9 December 1946.
- "Werner von Braun". Retrieved 2009-07-04.
- By January 1946, the U.S. Army Ordnance Corps invited civilian scientists and engineers to participate in developing a space research program using the V2. The committee was initially called the "V2 Rocket Panel", then the "V2 Upper Atmosphere Research Panel", and finally the "Upper Atmosphere Rocket Research Panel". See: Johan A.M. Bleeker, Johannes Geiss, and Martin C.E. Huber, ed.s, The Century of Space Science, vol. 1 (Dordrecht, Netherlands: Kluwer Academic Publishers, 2001) p. 41. See also: SpaceLine.org
- Beggs. Beggs Aerospace Post-War V-2 Site "HERMES". Retrieved 2008-12-01.
- "Redstone rocket". Centennialofflight.gov. Retrieved 2010-04-27.
- The Peenemünde replica incorporates many original components along with remanufactured ones and was put together by a group that included Reinhold Kruger, who worked as an apprentice at Peenemünde during the war.
- More pictures of V2 recovery operation at Harwich
- The WSMR exhibit is Mittelwerk rocket #FZ04/20919 captured during Special Mission V-2 and is painted with a yellow and black paint scheme of the first successful V-2 launched at WSMR on 10 May 1946.
References[edit source | edit]
- Oberg, Jim; Sullivan, Dr. Brian R (original draft). "'Space Power Theory". U.S. Air Force Space Command: Government Printing Office. p. 143. Retrieved 2008-11-28.</ref> 24,000 fighters could have been produced instead of the inaccurate V-weapons.
- Harris, Arthur T; Cox, Sebastion (1995). Despatch on War Operations: 23rd February, 1942, to 8th May, 1945. p. xliii. ISBN 0-7146-4692-X. Retrieved 2008-07-04.
- King, Benjamin and Timothy J. Kutta (1998). Impact: The History of Germany's V-Weapons in World War II . (Alternately: Impact: An Operational History of Germany's V Weapons in World War II.) Rockville Centre, New York: Sarpedon Publishers, 1998. ISBN 1-885119-51-8, ISBN 1-86227-024-4. Da Capo Press; Reprint edition, 2003: ISBN 0-306-81292-4.
Further reading[edit source | edit]
- Dungan, Tracy D. (2005). V-2: A Combat History of the First Ballistic Missile. Westholme Publishing. ISBN 1-59416-012-0.
- Huzel, Dieter K. (ca. 1965). Peenemünde to Canaveral. Prentice Hall Inc.
- Piszkiewicz, Dennis (1995). The Nazi Rocketeers: Dreams of Space and Crimes of War. Westport, Conn.: Praeger. ISBN 0-275-95217-7.
[edit source | edit]
|Look up v-2 rocket in Wiktionary, the free dictionary.|
|Wikimedia Commons has media related to: V-2 missiles|
- V2 Heavy Site Imagery - National Collection of Aerial Photography
- PBS: The hunt for Nazi scientists
- History of Peenemünde and the discovery of the German missile development by the Allies
- Discussion of V-2 defences
- About effect of V2's on London
- German V2/A4 test range (Heidekraut) in Tuchola Forest (Poland) today
- Dora and the V–2 – Slave labor in the space age
- "Chute Saves Rockets Secrets" , September 1947, Popular Science article on US use of V-2 for scientific research
- Video of Operation Backfire - WWII - The German V2 rocket, video showing assembly and launch procedure.
- Reconstruction, restoration & refurbishment of a V-2 rocket, spherical panoramas of the process and milestones.
